LED-based UV CIPP

LED-generated UV light cures faster and produces stronger liners than traditional CIPP technologies.

LED-based UV CIPP

LED-generated UV light cures faster and produces stronger liners than traditional CIPP technologies.

Our LED-based UV CIPP systems offer solutions for a wide range of trenchless pipe renovation.
Liner can be wet-out remotely or on-site with resins that are free of styrene and amines. UV-based cure technologies like SpeedyLight+ raise fewer objections from the public and your crew.
Contact Us

Learn more or request a demo!
Click Here

Compare

Click on the tabs for  an overview of each model.

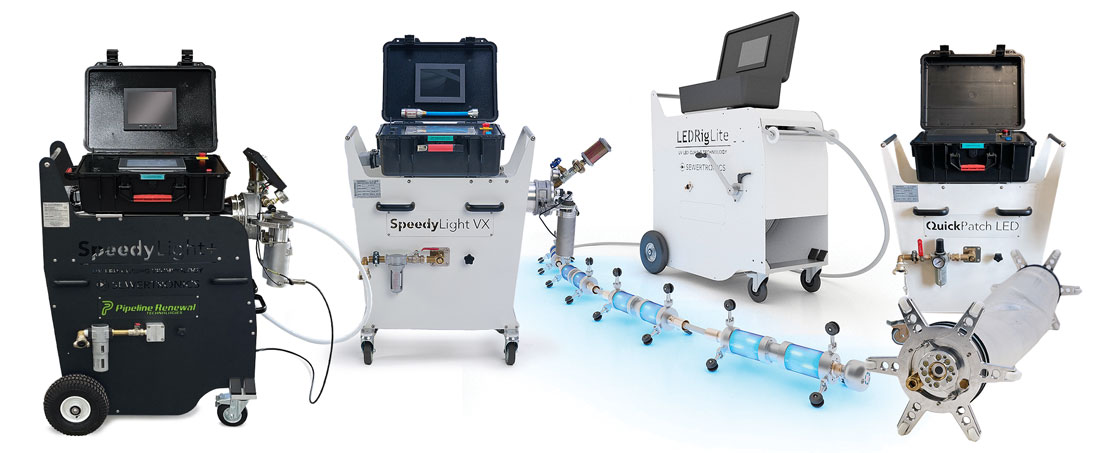

LED-based UV CIPP systems offered by Pipeline Renewal Technologies for efficient end-to-end pipeline rehab
SpeedyLight+

SpeedyLight+ cures at up to 4.92 fpm and is compatible with felt or GFRP liner. It can cure 90-degree bends, transitions and verticals in 2”-24” lines.

  • Line Size  –  2"-15" (felt), 2”-24” (GFRP)
  • Hose  –  328'
  • Heads  –  5 sizes, for different pipe sizes
  • Speed  –  up to 4.92 fpm

Learn More!

SpeedyLight VX

Designed for 2”- 6” lines (horizontal or vertical), the VX is more compact for use in tighter spaces.

    • Line Size  –  2"-6" (felt or GFRP)
    • Hose  –  130’
    • Heads  –  2 sizes

Learn More

LEDRig

Designed for mainlines, this unit can control up to 8 modules at a time. For use in 6"-24” lines. An online reporting application creates custom reports from a tablet or mobile device.

  • Line Size  –  6"-24" (GFRP)
  • Hose  –  656’
  • Modules  –  can control 4-8 at one time

Learn More

QuickPatch LED

LED-based UV light cures GFRP pre-pregs for quick spot repair in 4”-18” lines. The QuickPatch packers may be positioned with the QuickPatch console or SpeedyLight+ unit.

  • Line Size  –  4"-18"
  • Console Hose  – 164’
  • Heads – 4 packers, 4 modules
  • Speed – 3-5 min cure time per patch

Learn More

Cure Heads

Cure heads used by our LED-based UV CIPP systems

Different size cure heads are suitable for different pipe sizes. All have lamps in a 360° array to support the quality of the cure.

LED-based UV CIPP requires substantially less energy than steam or hot water. Compared to lamp-based UV systems, the UV LEDs in SpeedyLight+ use three times less energy and emit four times more UV light.

With the patented cooling technology, as soon as you are done with your curing job, you are ready to pack up the unit and go home.

Liner and Resin

Liner and resin formulated for LED-base UV CIPP are available from PRT

The choice of lining material and resins can make or break your job. We work with MaxLiner® and Omega Liner to provide the highest standard of liner, backed by extensive quality and certification processes. We carry materials not only for LED-based UV CIPP, but for other cure methods as well.

Together, we combine decades of experience in liner manufacturing and knowledge of what contractors need in the field. We’re always developing new and better materials to help you work faster with proven results.

Auxiliary Equipment

Accessories

Calibration rollers, inversion drums, nozzles and vacuum pumps all play a role in the CIPP process. PRT offers a range of these products, learn more on our Accessories page.

Work more efficiently with PRT's CIPP accessories such as our inversion drums.

Support

Every component of the CIPP process has an effect on the strength and durability of the final cured liner, each with a different set of considerations. PRT is here to advise and guide you every step of the way.
