Reinstatement Cutters

Air-powered, multi-axis rehab cutters

Reinstatement Cutters

Air-powered, multi-axis rehab cutters

Day after day PRTs lineup of robotic reinstatement cutters from IMS Robotics bring the power, speed and reliability needed to prep for relining or reinstate laterals afterwards.

Air-Powered Motors

Pneumatic motors are reliable and easy to repair. They excel in getting around bends, generate much less heat during use, deliver more horsepower per pound than other types of motors to make quick work of any material they face and are easier to transport and deploy.

Trust the pros at PRT to guide you to the right tool for your business.

Contact Us

Learn more about our cutters or request a demo!
Contact PRT

MICRO Series Cutters

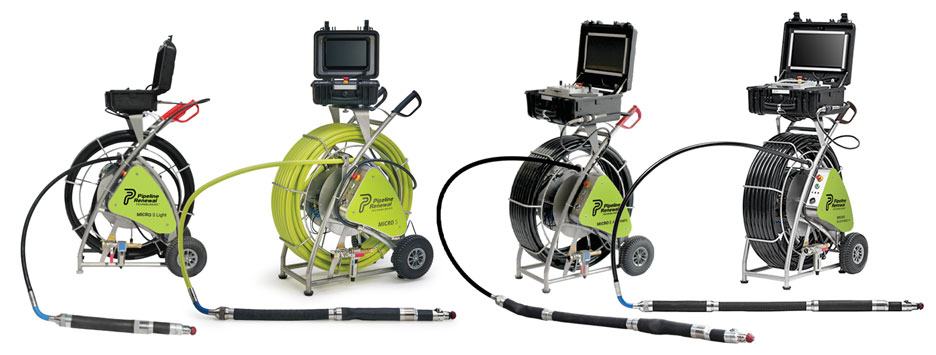

Micro series of reinstatement cutters from IMS Robotics
Micro S Light

The ideal entry-level reinstatement cutter for small diameter lines.

  • Line Size –  3"- 6"
  • Hose Length –  98'
  • Propulsion –  Push
  • Detachable Robot –  No
  • Control –  Joystick / 2 axes
  • Display –  integrated monitor

Learn More!

Micro S Light+

Suitable for a wide range of applications with excellent flexibility in bends and precise positioning.

  • Line Size  –  4"-6" (8"-10” optional)
                     3" straight lines with 90DCX Angular Cutting motor
  • Hose Length  –  164'
  • Propulsion  –  Push
  • Detachable Robot  – Yes
  • Control  –  joystick / 3 axes, including axial feed
  • Display –  10" monitor

Learn More!

Micro S Automatic

The largest of the Micro S Series, it is similar to the Micro Automatic Plus with a shorter reach. Automated inchworm-style movement with vertical climbing capability.

  • Line Size  –  4"-6" (8"-10” optional)
  • Hose Length –  165’
  • Propulsion –  Push
  • Detachable Robot –  Yes
  • Control –  joystick / 3 axes, including axial feed
  • Display –  10” monitor

Learn More

Micro Automatic Plus

An automated inchworm-style movement has vertical climbing capability and 230' reach.

  • Line Size  –  4"-6" (8"-10” optional)
  • Hose Length –  230’
  • Propulsion –  Push
  • Detachable Robot –  Yes
  • Control –  joystick / 3 axes, including axial feed
  • Display –  10” monitor

Learn More

NANO Series

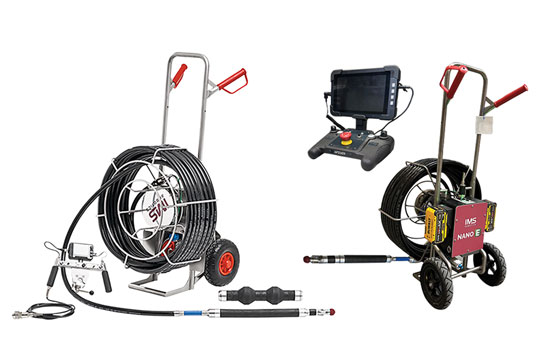

Nano Series of reinstatement cutters from IMS Robotics
NANO

The compact, air-powered NANO Easy packs a lot of power in a small package. It can be pushed horizontally or dropped vertically down small lines.

  • Line Size –  3"- 4"
  • Hose Length –  82'
  • Propulsion –  Push
  • Detachable Robot  –  no
  • Control –  manual
  • Display –  3.5" LCD with image capture

Learn More!

NANO E

The new Nano E is the ultra-quiet, electrically powered cutter for 3”-4” lines. Designed for in-house use and excellent maneuverability in bends.

  • Line Size –  3"- 4"
  • Hose Length –  164'
  • Propulsion –  Push
  • Detachable Robot –  No
  • Control –  Joystick
  • Display –  7" monitor

Learn More!

DRIVE Series

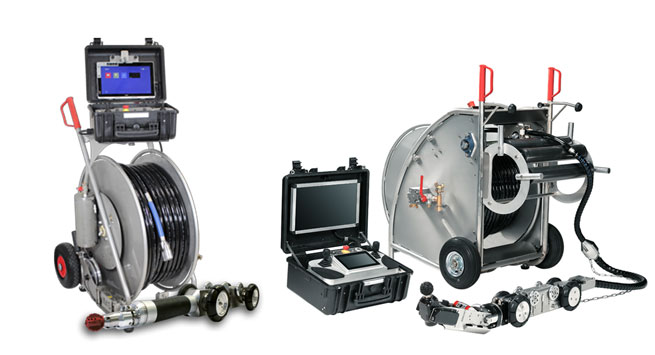

Drive series of reinstatement cutters from IMS Robotics
Drive

Powerful air-powered cutter to reinstate laterals and grinds offsets in mainlines.

  • Line Size –  6"- 16"
  • Hose Length –  328' or 492'
  • Propulsion –  Self propelled
  • Control –  Control unit with twin joysticks

Learn More!

Drive+

Fast and reliable cutting in mainlines up to 24”.  Two exchangeable air-powered cutting motors.

  • Line Size –  6"- 24"
  • Hose Length –  328' or 492'
  • Propulsion –  Self propelled
  • Control –  7" universal control unit

Learn More!

Tools

PRT's family of IMS robots are compatible with a wide range of tools that aid in vision, and are designed for maximum performance on specific materials and situations.

The 90DCX Angular Cutting Motor with a cutting bit attached and mounted on a Micro S Light+ robot.

45 or 90DCX Motor

With these angular cutting motors, bits are attached to the air motor offset at 45 or 90°. This gives a better view of your work and better maneuverability on laterals. Compatible with any MICRO or DRIVE series cutter.

Learn more

The many cutting bits for PRT's reinstatement cutters are optimized for different materials.

Cutting Bits

Our wide selection of bits means you can make cleaner, more precise cuts in a wide range of materials. The right bit lasts longer, cuts faster and protects your cutter. Like everything else, our team will train you on optimal bit selection.

Support

Count on PRT to match you with the cutter that will exceed expectations, outperform the competition and maximize profit. And we’ll be here for answers you need going forward.
